Lino Series Rectangle Crystal Chandelier Lighting Dinning Living Room LED Decoration Light Fixture Luxury Glass Chandelier Luminaire
| Lino rectangular Luminaire data sheet | |
| Size | 1120*144.5*65mm |
| Color | Matt White(RAL9016), matt black(RAL9005) |
| Housing material: | Aluminium |
| Lens material | PMMA |
| Louver reflector material | PC |
| Efficacy | Up to 120lm/W |
| Wattage | 30W |
| Voltage | 200-240V |
| Frequency | 50/60Hz |
| THD | <15% |
| Lumen | 3200lm |
| CCT | 3000K, 4000K, 6500K |
| CRI | >80Ra, >90Ra |
| UGR | <19 |

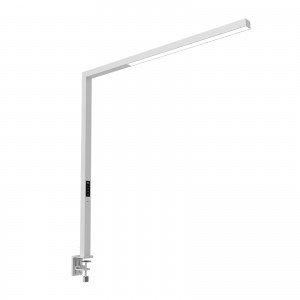

| Viewline Desk-standing Luminaire | |
| SDCM | ≤3 |
| Lifespan | 50000H(L80, Tc=55°C) |
| Warranty | 5 years |
| Operating | -35~45°C |
| IP Protection | IP20 |
| IK Protection | IK02 |
Modernization of Lino series
Changed the previous design, Lino is the perfect combination of optic design and architectural aesthetic. Due to the ultra thin design, Lino could highly meet the modern architectural lighting design concept.
Lino Luminaire Details
Modular design. Fast mounting. Easy maintenance

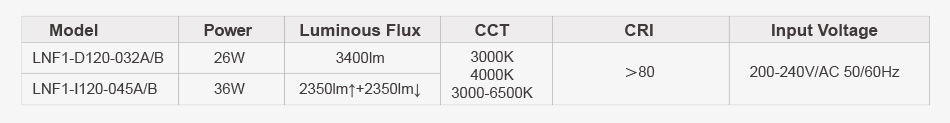

Lino Order Option
Lino module
Lino Downlight Luminaire
Features
UGR<19, glare-free and uniform light.
Elegant and modular design.
Easy installation and replacement.
Up to 120lm/W.
No flickering, visual comfort.
Application
Office, education, communication area
Specifications
General
• Size 160*40mm, 210*40mm
• Color Matt White(RAL9016), Matt Black(RAL9005)
• Material Housing: Aluminium
• Lens: PC
• Louver reflector: PC
Optical
• Lumen 2000lm@160*40mm(Open hole position 150mm)/3000Im@210*40mm(Open hole position 200mm)
• CCT 3000K, 4000K, 6500K
• CRI >80Ra, >90Ra
• UGR <19
• SDCM < 3
Electrical
• Efficacy 120lm/W
• Wattage 18W@160*40mm, 25w@210*40mm
• Voltage 200-240V
• Frequency 50/60Hz
• THD <15%
Durability
• Lifespan 50000H(L90, Tc=55°C)
• Warranty 5 years
• Operating -35~45°C
• IP Protection IP20
• IK Protection IK05
• Beam angle 60Degree
• Mounting Recessed
Dimensions
Lino square Luminaire
Features
UGR<16, glare-free and uniform light.
Elegant and modular design.
Easy installation and replacement.
High Efficacy 120lm/W, 80Ra
No flickering, visual comfort
Application
Office, education, communication area
Specifications
General
• Size 285*285*63mm
• Color Matt White(RAL9016), Matt Black(RAL9005)
• Material Housing: Aluminium
• Lens: PC
• Louver reflector: PC
Optical
• Lumen 3300lm
• CCT 3000K, 4000K, 6500K
• CRI >80Ra, >90Ra
• UGR <16
• SDCM < =3
Electrical
• Efficacy 120lm/W(110lm/W@>90Ra)Wattage 30W
• Voltage 200-240V
• Frequency 50/60Hz
• THD <15%
Durability
• Lifespan 50000H(L90, Tc=55°C)
• Warranty 5 years
• Operating -35~45°C
• IP Protection IP20
• IK Protection IK05
• Beam angle 65Degree
• Mounting Surface-mounted
Dimensions

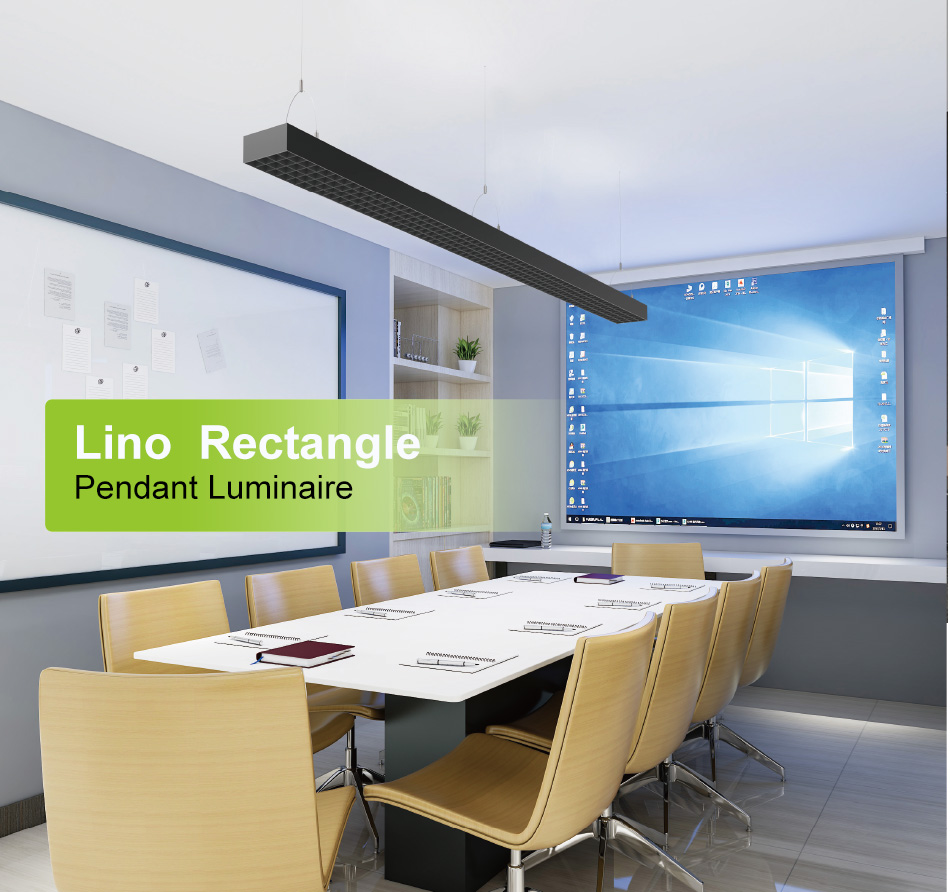

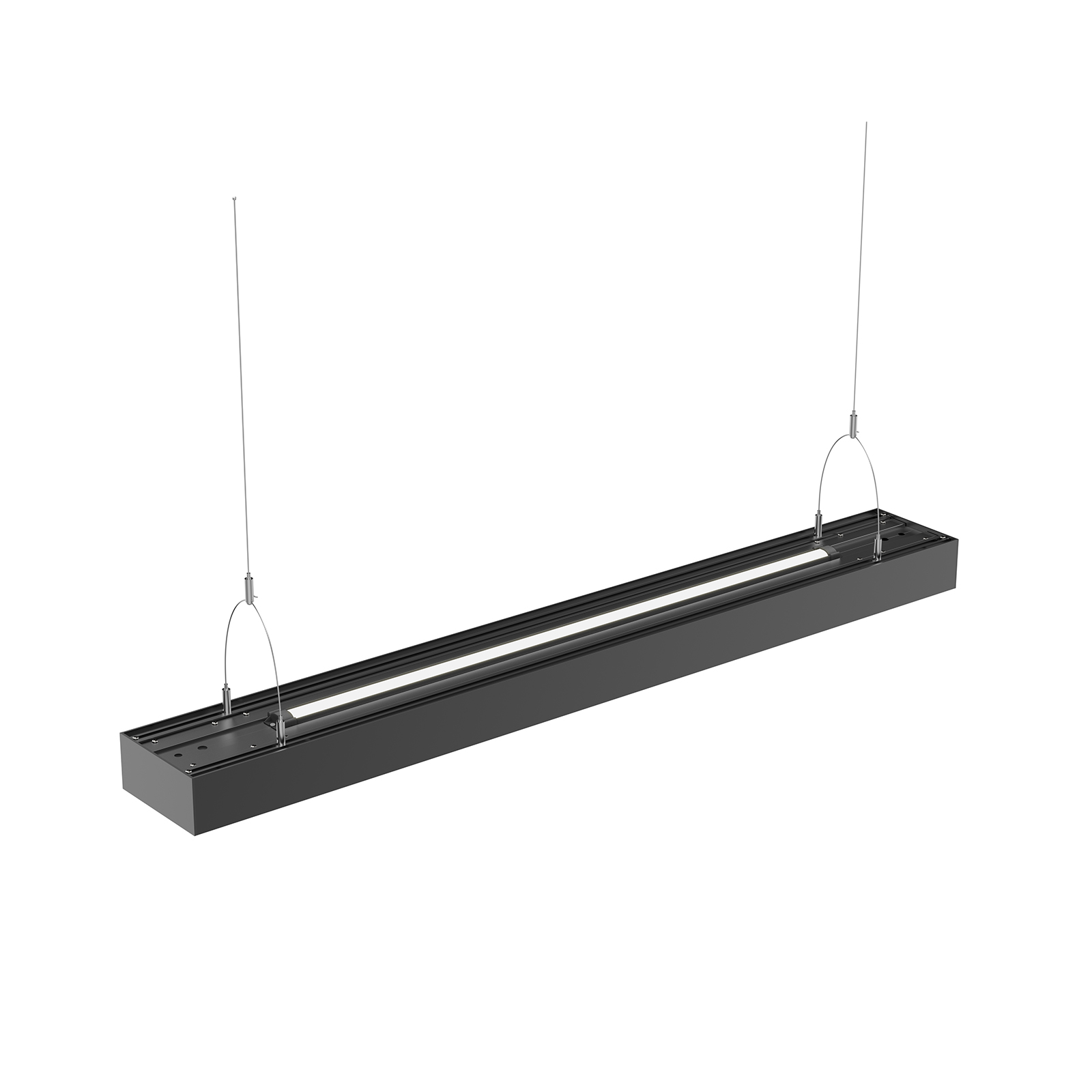

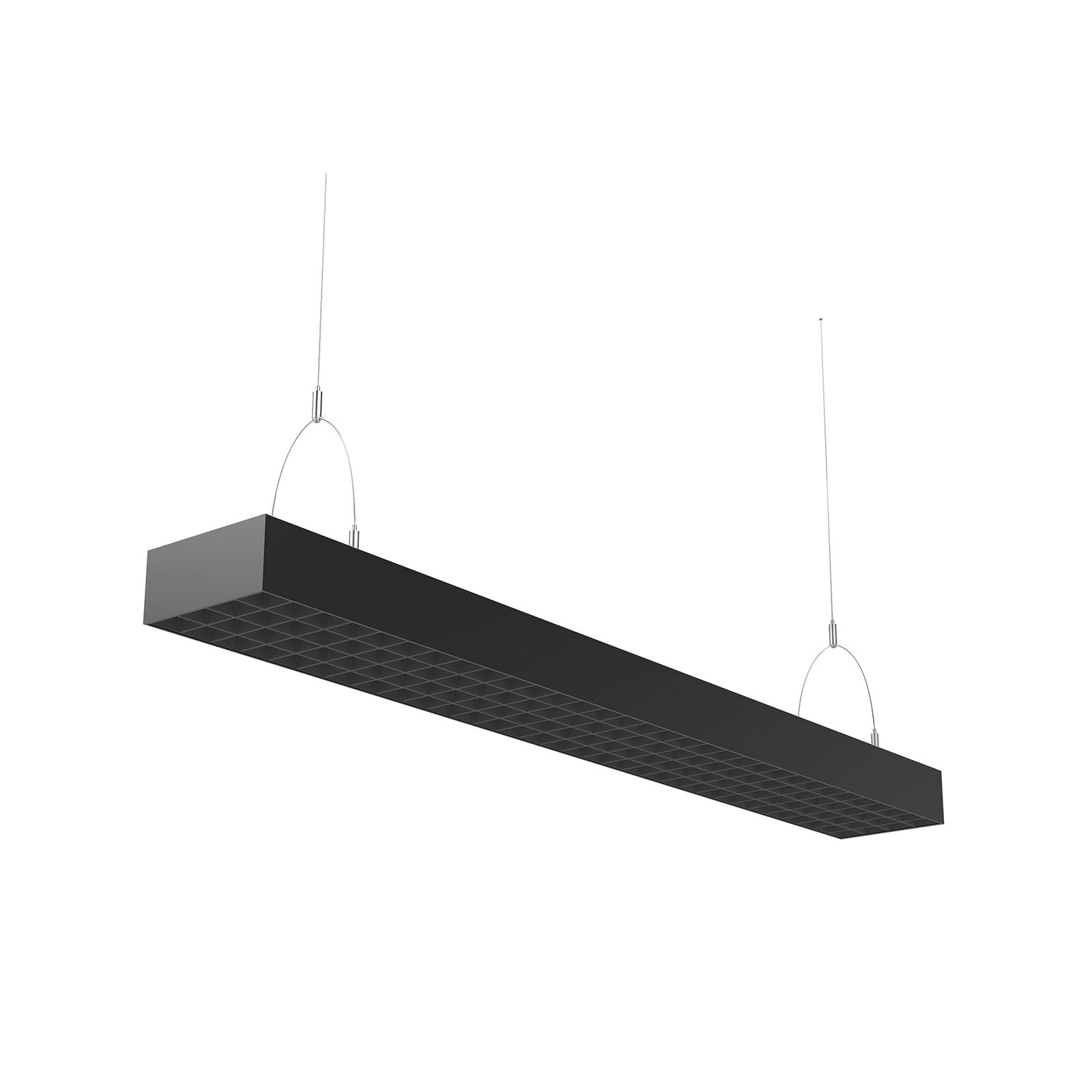

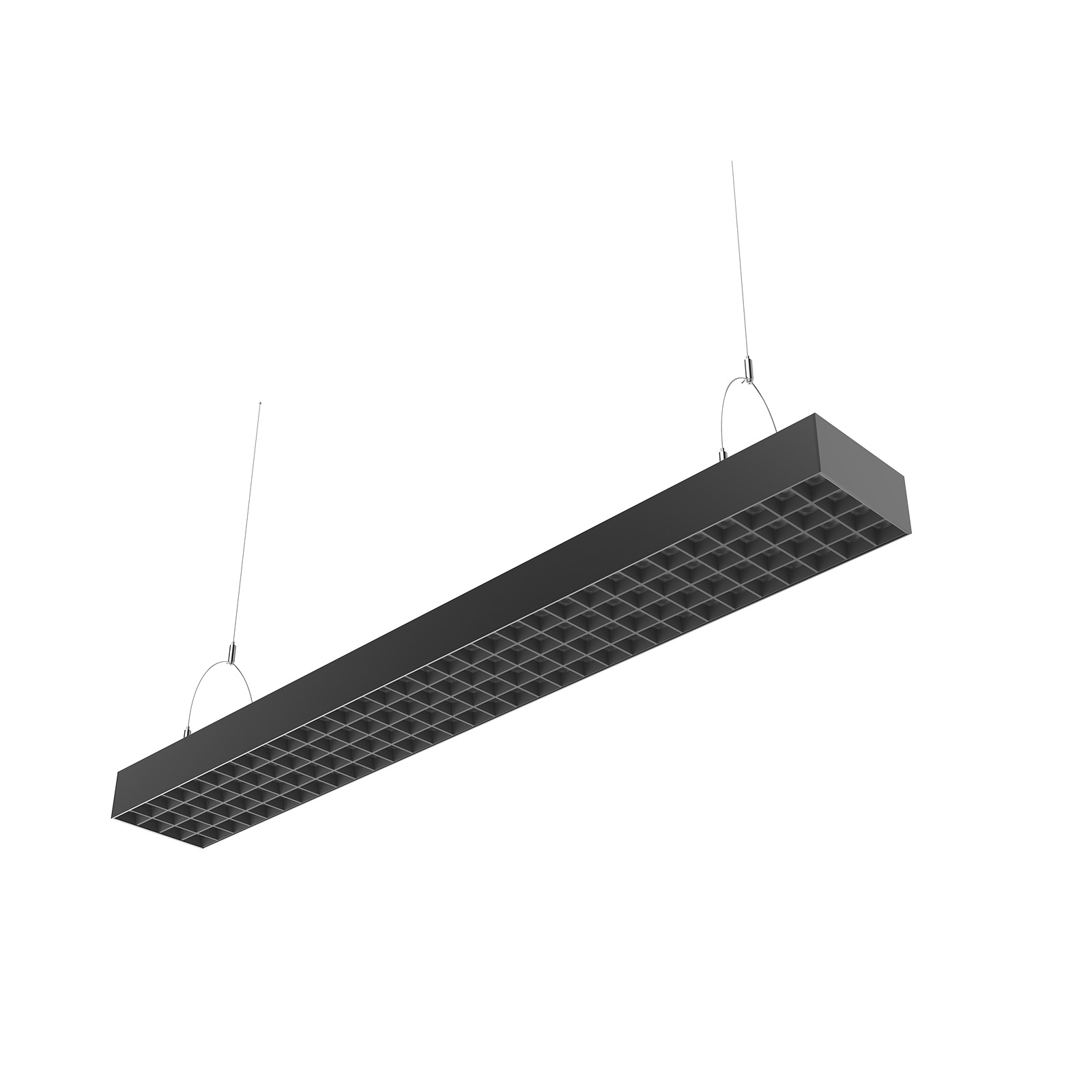

Lino rectangular Luminaire
Features
• UGR<19, glare-free and uniform light.
• Elegant and modular design.
• Easy installation and replacement.
• Up to 120lm/W.
• No flickering, visual comfort
Application
• Office, education, communication area
Specifications
General

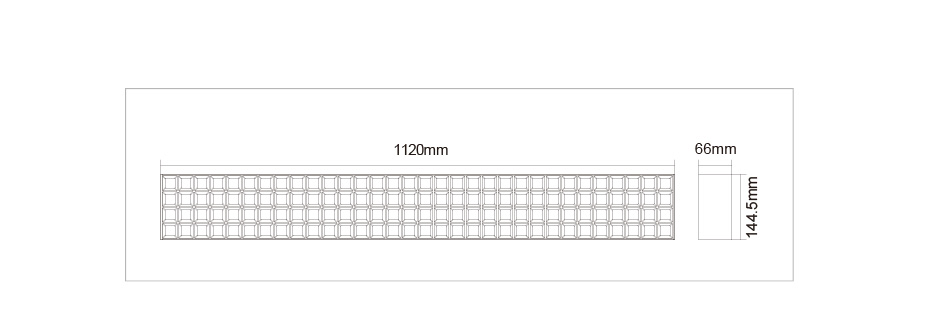

• Size 1120*144.5*65mm
• Color Matt White(RAL9016), Matt Black(RAL9005)
• Material Housing: Aluminium
• Lens: PC
• Louver reflector: PC
Optical
• Lumen 3300lm
• CCT 3000K, 4000K, 6500K
• CRI >80Ra, >90Ra
• UGR <19
• SDCM < =3
Electrical
• Efficacy 120lm/W
• Wattage 30W
• Voltage 200-240V
• Frequency 50/60Hz
• THD <15%
Durability
• Lifespan 50000H(L90, Tc=55°C)
• Warranty 5 years
• Operating -35~45°C
• IP Protection IP20
• IK Protection IK05
• Beam angle 65Degree
• Mounting Pendant
