Lino Series square indoor surface-mounted-luminaires
Lino square Luminaries

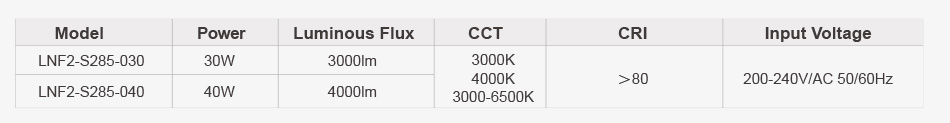

| Product name | Prisma Rectangular Luminaire | ||

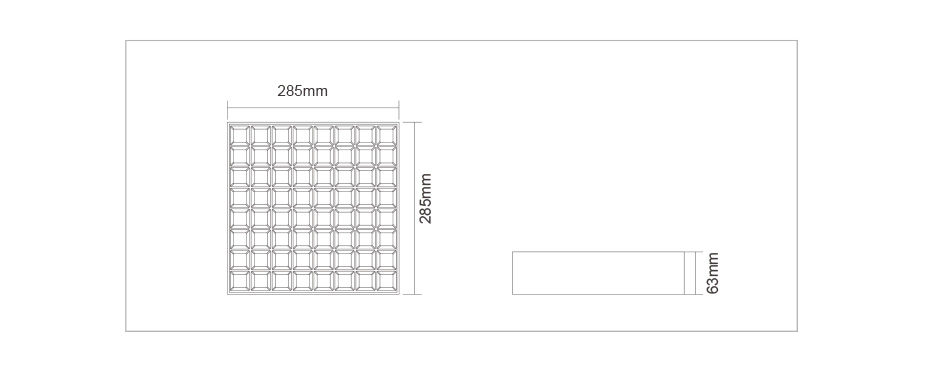

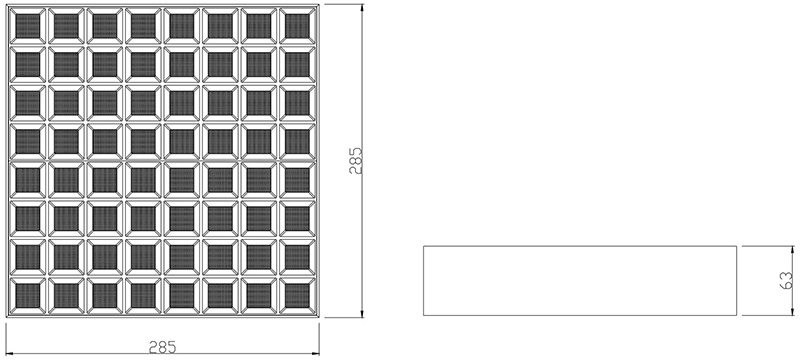

| Size |  |
Color | Matt Black(RAL9005);Matt White(RAL9016); |

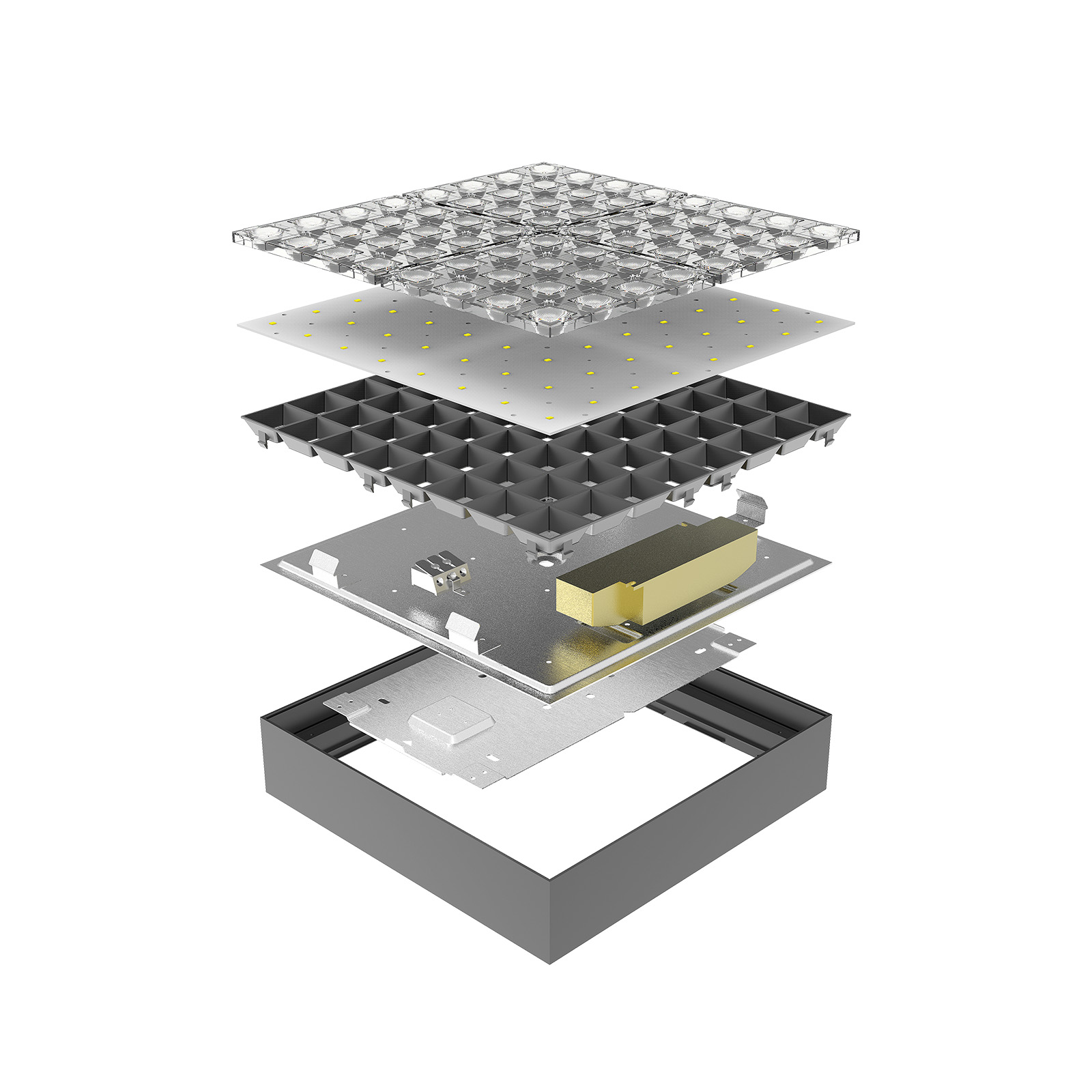

| Material | Housing:Aluminium; Lens:PC; Louver reflector:PC | ||
| Wattage | 30W±10% | Lumen | 3300lm |
| Voltage | 200-240V 50/60Hz | Efficacy | 110lm/w@>90Ra |
| CRI | >80Ra, >90Ra | CCT | 3000K,4000K |
| SDCM | ≦3 | UGR | <19(X=4H,Y=8H) |
| IP Protection | IP20 | Operating | -35~45℃ |
| IK Protection | IK02 | Warranty | 5 Years |
| Lifespan | L50000h(L90,Tc=55℃) | Installation | Surface-mounted |

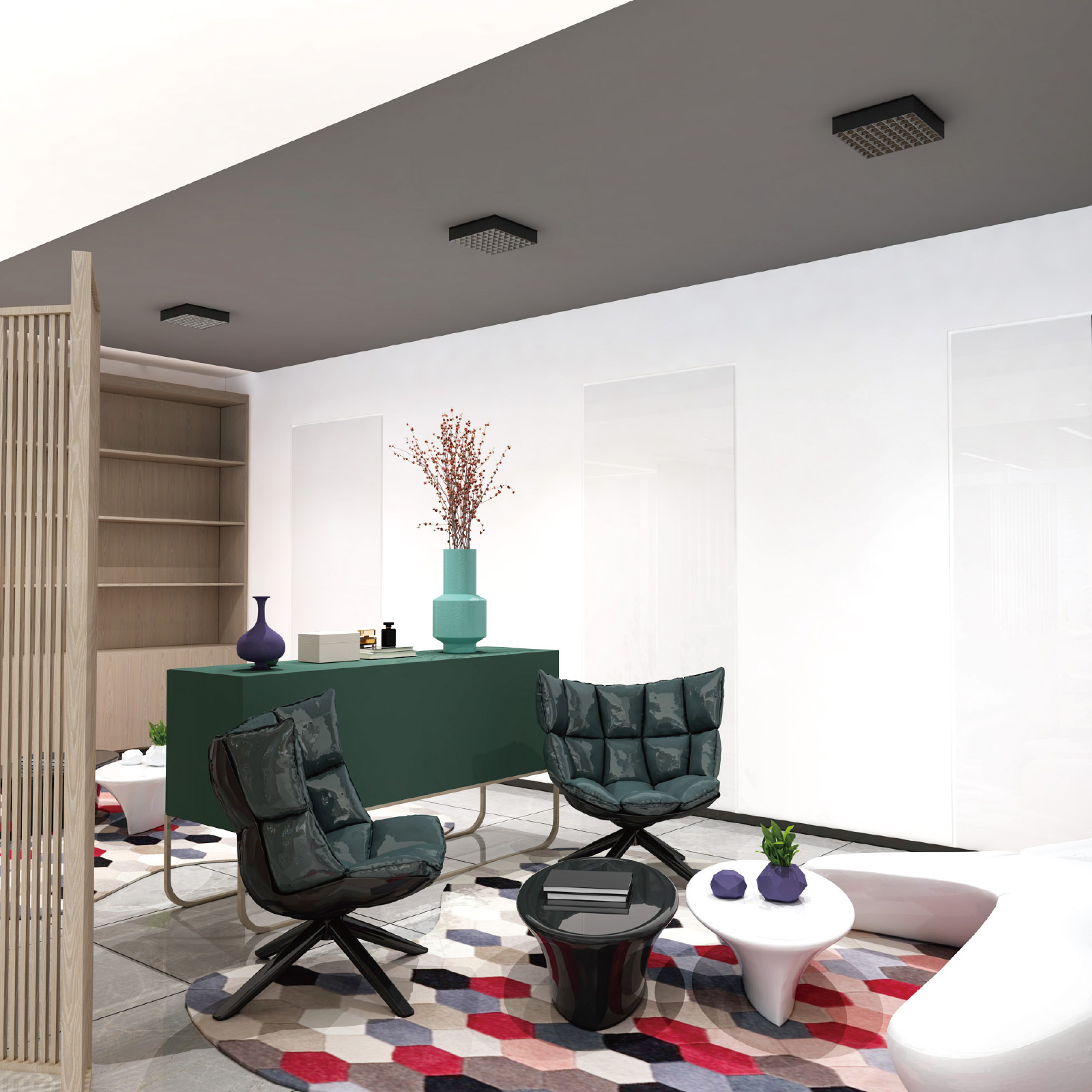

Compared with the traditional office

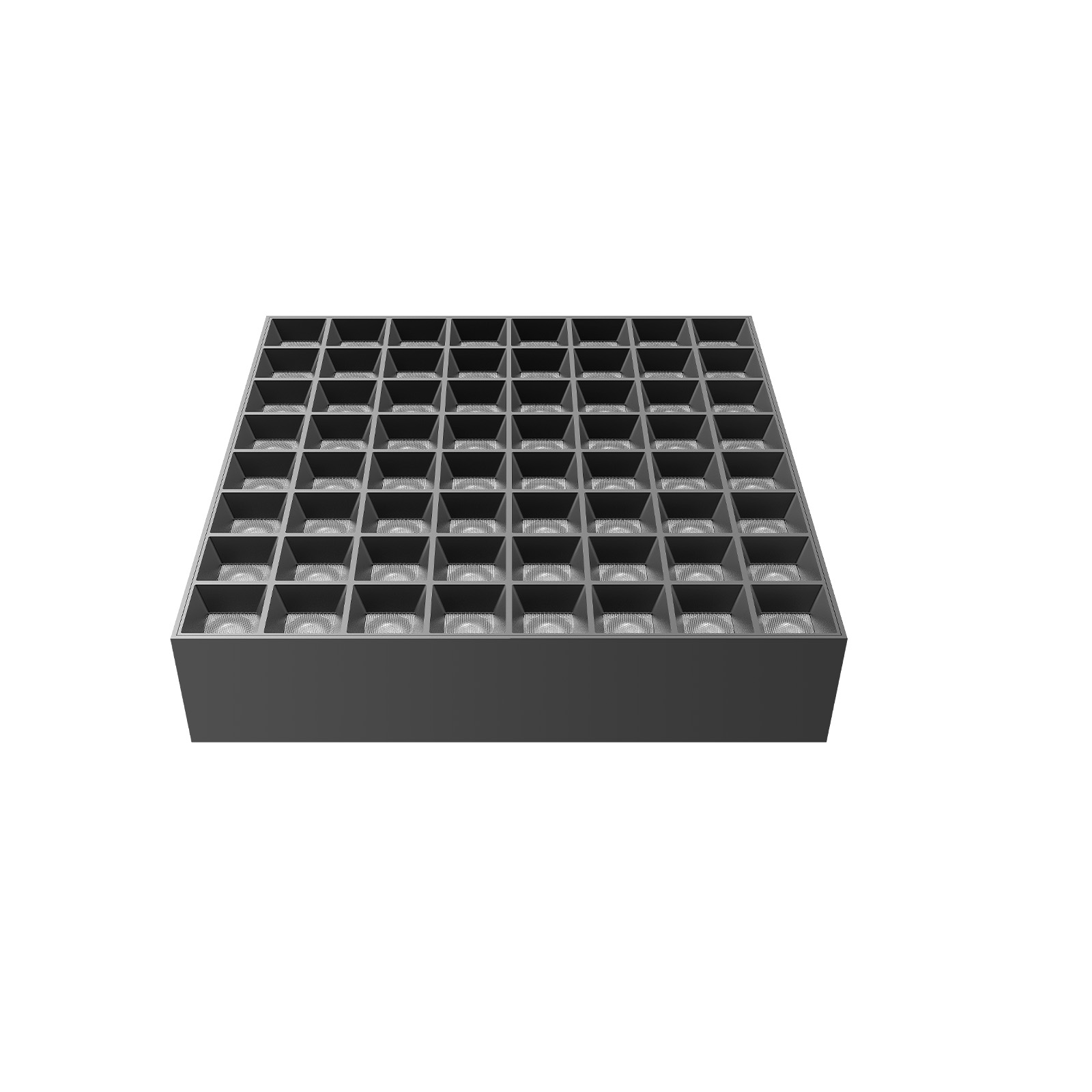

LINO Square Surface-mounted series provides a special but high-efficiency lighting solution that meets the standard of kinds of office applications. Simple and modern appearance with grille design. The grille design controls the light output of each louver to the best, obtains invisible light, and has a good anti-glare effect. Visual comfort and uniform light emission. Let it stand out from traditional office lighting.
UGR (Unified Glare Rating) Table.
Services support:
Pre-sale services:
product specifications, IES reports, high-definition photos, physical photos, certification certificates (SAA C-TICK, CB, ENEC, TUV, L90), video inspection samples, Dialux stimulation etc.
After-sales service:
The lifespan of lighting fixture is 50000 hours. Generally, it will naturally break under normal use. During the warranty period, we will provide repair and replacement services, but the freight will be borne by the buyer.
Note editing Voice:
1. Check whether the product is in good condition immediately after unpacking the downlight.
2. Cut off the power before installation, make sure the switch is closed to prevent electric shock, after the lights are on, please don't touch the surface of the lights with your hands. This lamp should be avoided to install in the place of heat source and hot steam, corrosive gas, so as not to affect the life.
3. Before use, please confirm the applicable power supply according to the installed quantity.
4. the product uses high-voltage (110V/220V) power supply lamp cups, it is not suitable to work in the state of frequent power-on and power-off, which will affect its life.
5. Install in a flat place with no vibration, no swing, and no fire hazard. Take care to avoid falling from high altitude, collision with hard objects, and percussion.
6. If it is not used for a long time, the downlight should be stored in a cool, dry and clean environment. It is forbidden to store and use it in humid, high temperature or flammable and explosive places.
