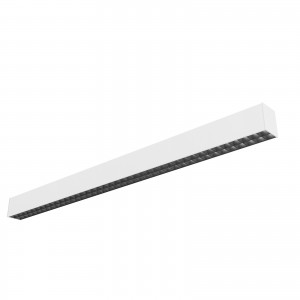

Premline linear lights direct version
Short Description:
This compact and high-performing Premline brings eye-pleasing illumination to architectural and commercial interiors. Designed to be surface mounted, suspended or recessed, and featured with light weight and easy installation, this linear light lends a clean aesthetic to offices, retail spaces, supermarkets, stairwells and other applications which require high-quality lighting and price effective. The Premline can be quickly and easily linked together to create runs of light that appear seamless.
| Specifications | Premline linear lights direct version |
| Size | 1200mm, 1500mm, 3000mm |
| Color | Matt White(Ral 9016),Matt Black(RAL 9005) |
| Material | Housing: Aluminium Diffusor: Microprism PMMA End cap: Aluminium |
| Lumen | 2400lm, 3200lm@1200mm, 3000lm, 4000lm@1500mm, 6000lm, 8000lm@3000mm, |
| CCT | 3000k, 4000k,3000-6500k tunable |
| CRI | >80Ra, >90Ra |
| UGR | <22 |
| SDCM | ≤3 |
| Efficacy | 120lm/W |
| Wattage | 17W, 25W@1200mm, 25W, 31W@1500mm, 50W, 62W@3000mm |
| Voltage | 200-240V |
| THD | <15% |
| Lifespan | 50000H(L90, Tc=55°C) |
| IP Protection | IP20 |
| Specifications | Premline linear lights indirect/direct version |
| Size | 1200mm,1500mm,3000mm |
| Color | Matt White(Ral 9016),Matt Black(RAL 9005) |
| Material | Housing:Aluminium Diffusor:Microprism PMMA End cap:Aluminium |
| Lumen | 4000lm(1600lm↑＋2400lm↓)@1200mm,5000lm(2000lm↑＋3000lm↓)@1500mm,10000lm（4000lm↑+6000lm↓）@3000mm, |
| CCT | 3000k,4000k,3000-6500k tunable |
| CRI | >80Ra, >90Ra |
| UGR | <19 |
| SDCM | ≤3 |
| Efficacy | 130lm/W |
| Wattage | 31w@1200mm, 38w@1500mm, 77w@3000mm |
| Voltage | 200-240V |
| THD | <15% |
| Lifespan | 50000H(L90, Tc=55°C) |
| IP Protection | IP20 |
Architects need an elegant lighting with outstanding performance, helping them in design side to enhance the spatial experience. Investors want luminiares in higher efficiency and durability. Easy installation and replacement are installers' concerns. Employees expect the environment to increase well-being and improve productivity.
Premline could meet all sets of requirements and act as an ideal lighting solution for office and education areas.
Seamless connection and Elegant design
Premline linear lights are different in special connect way to archive seamless connection and no light leakage.Premline appear elegant due to its stylish outline with no visibel screws,compatible with architectural aesthetics.
Microprism glare control diffusor
Thanks to innovative optical technology, Premline could produce glare-free lights with micoprism diffusor. Glare-free, UGR<13,l65<1500 cd/m².
Five-year warranty and strong R&D team
Providing high quality products with a five-year warranty.Over 30 professional and experienced engineers in R&D team, strongly support Sundopt unique and special OEM/ODM strategy.
Modular and elegant design
The split modular design of the linear light facilitates installation and transport. Flexible stocking solutions are available for the SKD.
Uniform indirect/direct light
Viewline Linear has two types, direct type and indirect-indirect type. Direct lights provide services for the workstations, while indirect lights can enhance the uniformity of the entire task area, thereby creating a balanced luminous environment through the reflection of the ceiling.
Compatible with a wide range of control solution
Adhering to the concept of human-centred and intelligent control, it is compatible with various wired and wireless control methods.
Turnable white version for HCL(human centric light)with DALI2 DT8 driver. Other wireless control solutions are available such as Zigbee, bluetooth5.0+Casambi App.
High lumen efficiency 130lm/w
High lumen efficiency 115lm/w with suitable lumen output for office, save more energy.
Suitable for all types of installation
• More than 130lm/W.
• Optimal glare control, UGR<19.
• Seamless connection and no light leakage.
• Individual type and continuous row optional.
• No flickering, visual comfort.
